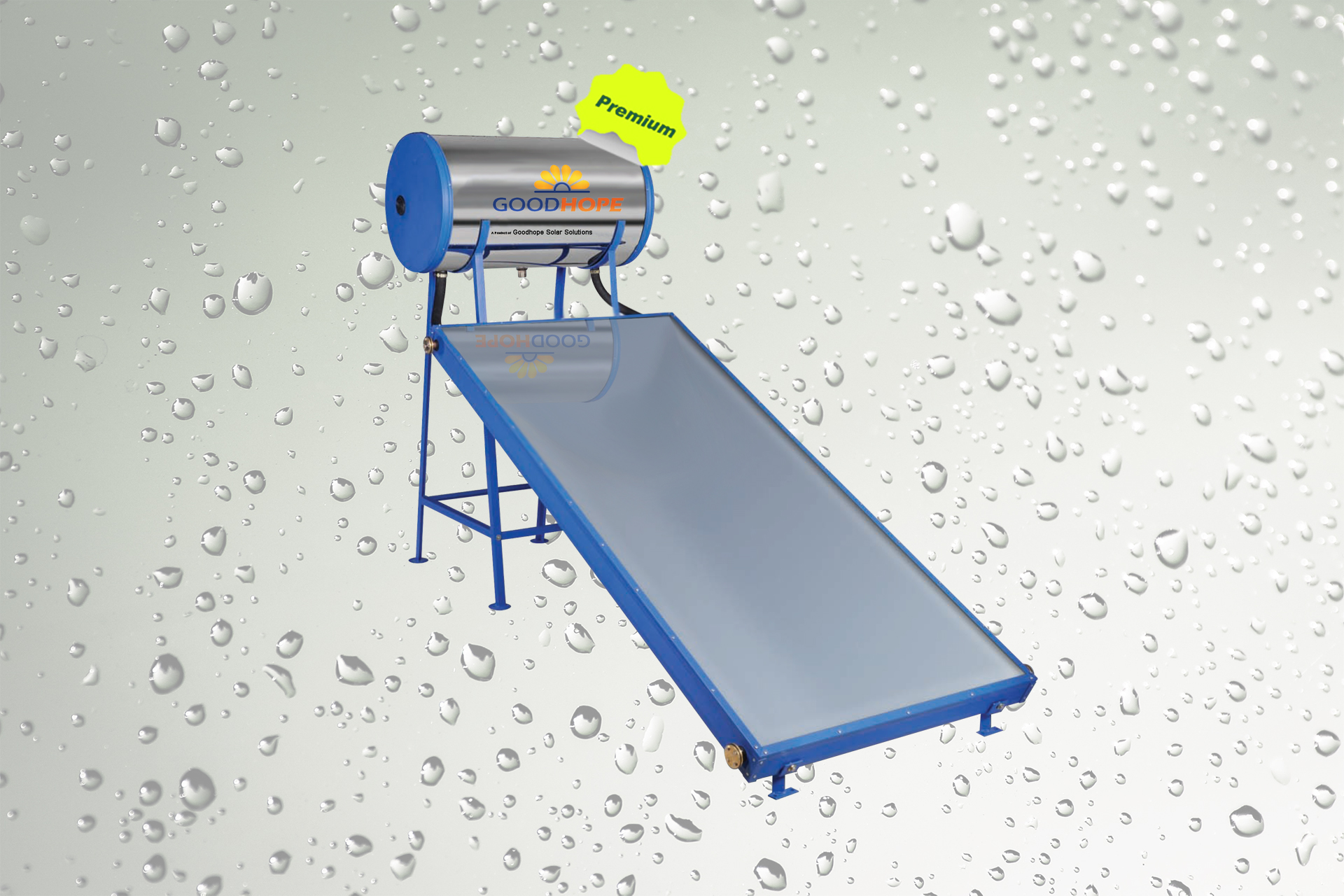

Features:

• Superior corrosion resistant stainless steel inner tank / MS tank
• PUF insulation for minimum heat loss
• Corrosion proof powder coated outer body
• 2 KW Backup electrical heater with built-in thermostat
• High efficiency selectively coated copper absorbers
• Sacrificial anode to prevent Galvanic corrosion
• Easy in house installment schemes
• Performance warranty 5 years
• Product warranty 1 year

Features:

• Superior corrosion resistant / hard water resistant copper inner tank
• PUF insulation for minimum heat loss
• Corrosion proof powder coated outer body
• 2 KW Backup electrical heater with built-in thermostat
• High efficiency selectively coated copper absorbers
• Sacrificial anode to prevent Galvanic corrosion
• Easy in house installment schemes
• Performance warranty 5 years
• Product warranty 1 year

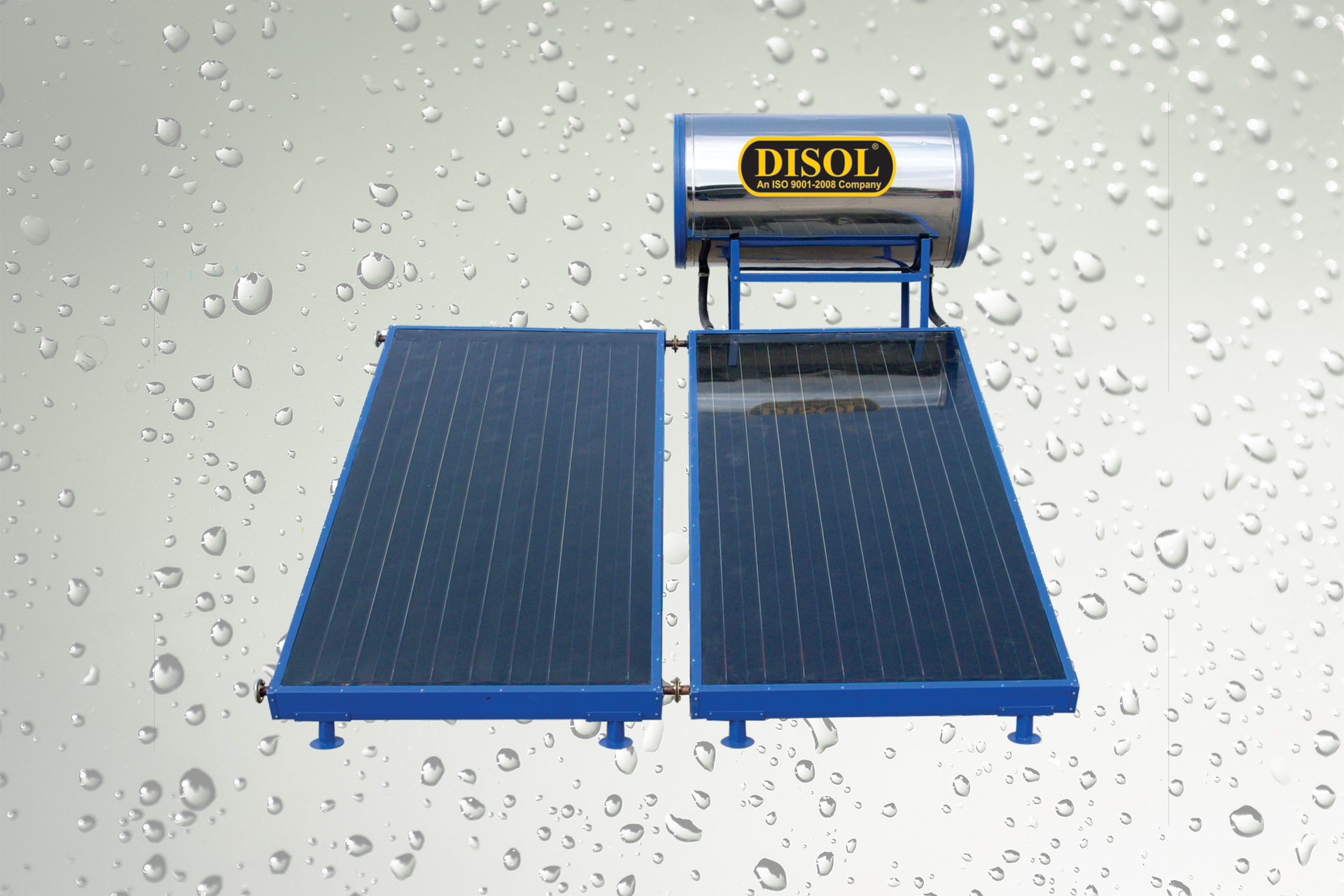

Features:

• High efficiency selectively coated Copper absorbers
• Sturdy, pure polyester powder coated box
• Inner Tanks made in SS 304, MS Tank with Epoxy coated and Electrical grade Copper sheet
• Electroplate the black chrome coated improves energy absorption, long service life, enduring high temperature
• In case water quality is not good the TDS and PPM so high, We prefer Copper Tank

Technical Specification
Absorber Sheet	Copper 34 SWG/0.1 mm thick selectively coated Laser Welded Chrome coated (E.T.P.Quality)
Riser Tube	Copper 12.5 mm 24 SWG ( + 0.5 mm)
Header Tube	Copper 25 mm 22 SEG ( + 0.5 mm)
No. of Riser Tube	9 Fins
Bonding between Riser & Absorber	High Temperature Ultrasonic seam/laser welding
Absorber Coating	Selective coating absorptivity 0.95+0.02 Emissivity = 0.10 + 0.02
Front Glazing	50 mm thick Rock Wool slab density of 48kg/M3 with Aluminium foil
Back Insulation	Toughen Glass 4 mm thickness Transparency 87% and above
Gasket	EPDM Rubber Grommets and Glass Beading
Collector Box	Jindal/ Indalco Aluminum, extruded channel backened by a sheet of22 SWG
Header Inlet & outlet Jacket	Brass flanges 62 mm dia
Collector stands and legs	M.S. "L" Angle with enamel coated
Support top glazing	Glass retaining aluminum beading 1.6 mm
Collector Box	Riveted
Insulation	Rock wool
Fasteners	S.S / GI Screws and Bolts Nuts
Collector Sealant	Silicon Base

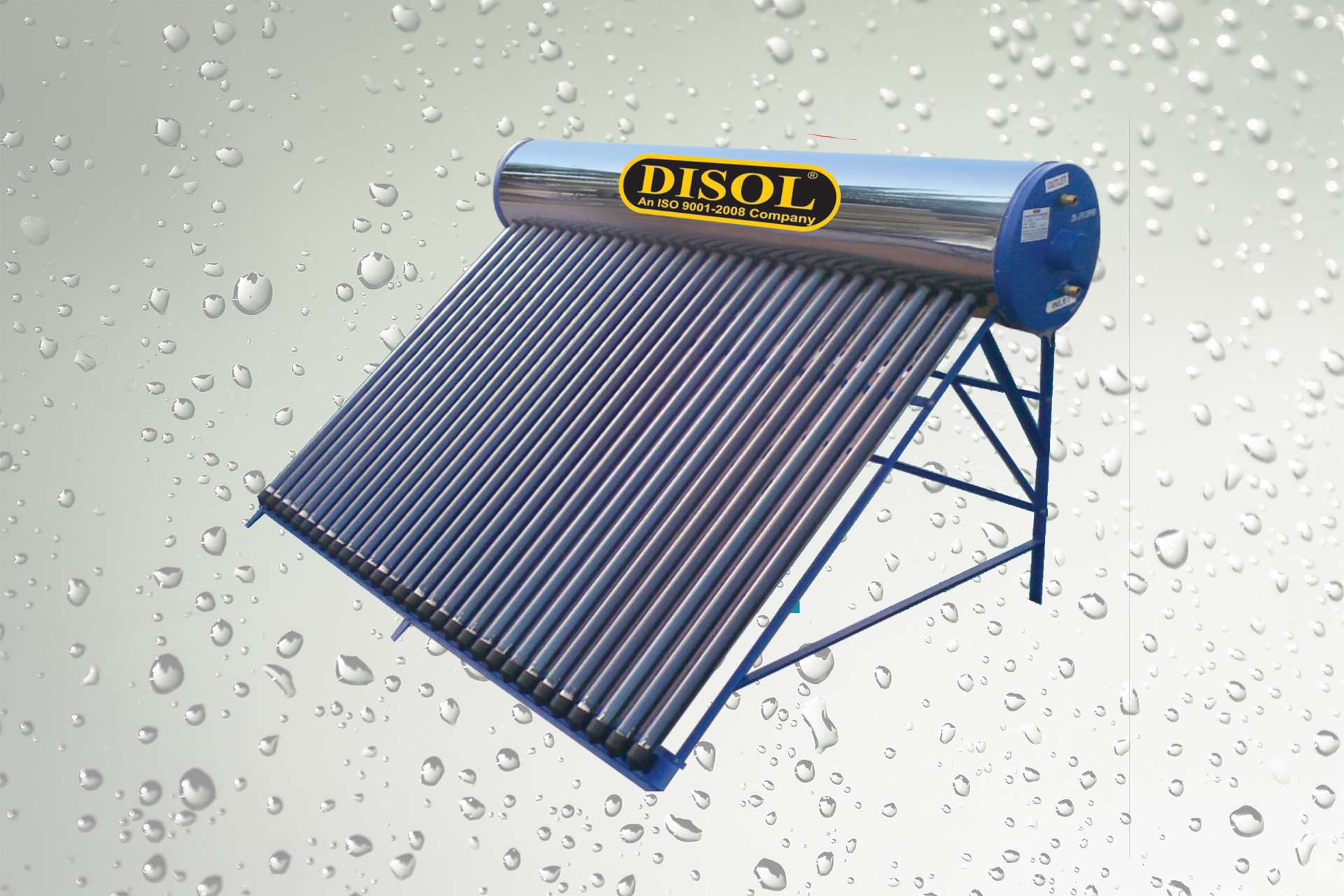

Features:

• SS 304, Copper Inner Tank
• Outer Cladding SS / GI Powder Coated
• Electrical Backup with Non Sunny days (Optional)
• Absorption per day 95% auto Sun Tracking Collection
• PUF Insulated Storage Tank
• Better performance in Winter & Cloudy Days
• Excellent heat absorption and minimum heat reflection
• No scale formation & No pipe blockage will occur by using Salt &Hard water on Copper Tank

Technical Specification
Type of Collector	ETC
Tube Specification	47 – 1500 mm / 58 – 1800mm
Structural Frame	27 degree
Inner Tank Material	Copper / SS 304 / MS (Mild Steel )
Insulation	High Density PUFF Material
Outer Tank	Stainless Steel
Tank Volume	100 ltr, to as per customer requirement
